ALL PRODUCT

Premium Hi series

Premium Hi series

Hi400i

Premium Hi series Hi400i

User manual
  • Features ① Premium welding machine excellent for automotive thin plate (mild steel, galvanized coating, etc.) and low spatter welding
    ② Low spatter welding machine via high speed waveform control (LSM mode)
    ③ Enable the majority of communication interface and network scalability by adopting interface converter (Hi-COMM)
    ④ Ensure the visibility by adopting 5” large screen graphic U/I
    ⑤ Comfortable update using USB memory port
    ⑥ Easy maintenance by providing detailed error codes(47 codes) and storing/checking 100EA by error log time
  • Configuration
    and Option     Package configuration (For robot)
    ① Welding machine power source
    ② Wire feeder(including of the bracket)
    ③ Torch
    ④ Shock sensor
    ⑤ Output cable
    ⑥ Earth cable
    ⑦ Control cable
    ⑧ Control cable
    ⑨ Sensing cable
    ⑩ Conduit cable
    ⑪ GAS HOSE
    ⑫ Interface converter (Including of the Hi-COMM and cable)

    Option
    ① Regulator
    ② Wire reel stand, straightener

    Package configuration (For manual)
    ① Welding machine power source
    ② Wire feeder
    ③ Torch
    ④ Input cable
    ⑤ Output cable
    ⑥ Earth cable
    ⑦ Control cable
    ⑧ sensing cable

    Option
    ① Regulator
  • Specifications Rated input
    220V/380V/440V, 3P, 50/60Hz(±10%)

    Rated output
    400A, 34V(60%@40℃)

    Welding technique
    CO2, MAG, MIG

    Weight
    50kg

    Dimension
    316 x 619.7 x 563.3 (mm)

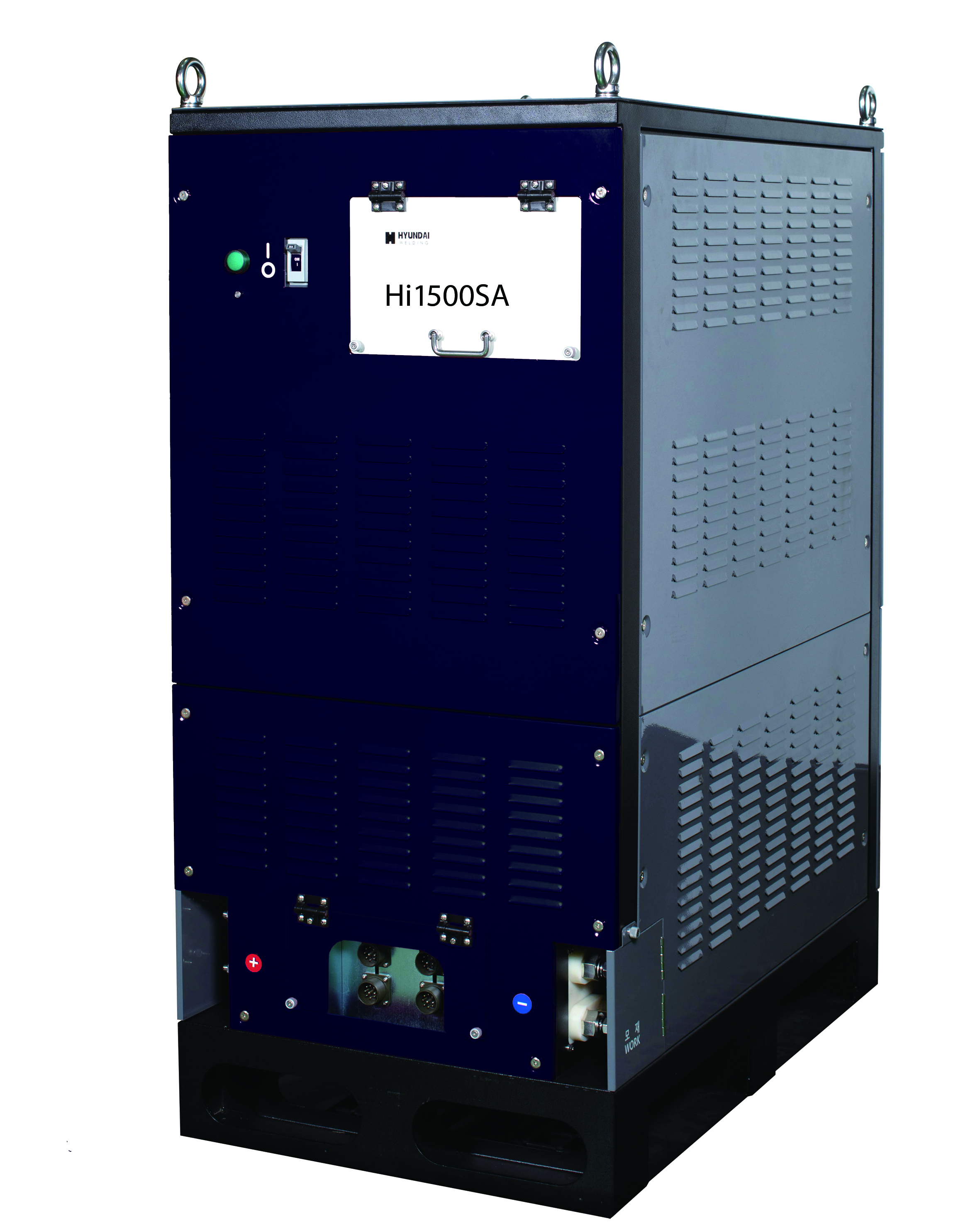

Hi1500SA (SAW AC/DC)

Premium Hi series Hi1500SA (SAW AC/DC)

Catalog
  • Features ① World's largest inverter DC 1500A welding power source
    ② Good quality of low and high current welding range
    ③ Digital inverter welding machine
    ④ Built in CC mode and CV mode
    ⑤ Compatible use analog or digital carriage
  • Configuration
    and Option     Package composition
    ① Power source
    ② Input cable 5m
    ③ Welding cable 30m
    ④ Earth cable 10m

    Option
    ① Carriage type(analog, digital)
    - Analog carriage : cc or cv mode
    - Digital carriage : CC/CV
    ② Cable length
    ③ Earth clamp
    ④ Carriage rail
    ⑤ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input
    440V 3PHASE ,60Hz (±10%)

    Rated output
    50V/1500A (Input : 440V)

    Welding way
    SAW DC/AC

    Weight
    395kg

    Dimension(WxDxH)
    600 x 1000 x 1300 (mm)

Hi1500SD (SAW DC)

Premium Hi series Hi1500SD (SAW DC)

  • Features ① World's largest inverter DC 1500A welding power source
    ② Good quality of low and high current welding range
    ③ Digital inverter welding machine
    ④ Built in CC mode and CV mode
    ⑤ Compatible use analog or digital carriage
  • Configuration
    and Option     Package composition
    ① Power source
    ② Input cable 5m
    ③ Welding cable 30m
    ④ Earth cable 10m

    Option
    ① Carriage type(analog, digital)
    - Analog carriage : cc or cv mode
    - Digital carriage : CC/CV
    ② Cable length
    ③ Earth clamp
    ④ Carriage rail
    ⑤ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input
    440V 3PHASE ,60Hz (±10%)

    Rated output
    50V/1500A (Input : 440V)

    Welding way
    SAW DC

    Weight
    321kg

    Dimension(WxDxH)
    600 x 1000 x 1300 (mm)

Hi1000SA (SAW AC/DC)

Premium Hi series Hi1000SA (SAW AC/DC)

  • Features ① SAW inverter DC welding machine

    ② Good quality of low and high current welding range

    ③ Digital inverter welding machine

    ④ Built in CC mode and CV mode

    ⑤ Able to use analog or digital carriage
  • Configuration
    and Option     Package composition

    ① Power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m



    Option

    ① Carriage type(analog, digital)

    - Analog carriage : cc or cv mode

    - Digital carriage : CC/CV

    ② Cable length

    ③ Earth clamp

    ④ Carriage rail

    ⑤ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/1000A (Input : 440V)



    Welding way

    SAW DC/AC



    Weight

    395KG



    Dimension(WxDxH)

    600 x 1000 x 1300 (mm)

Hi1000SD (SAW DC)

Premium Hi series Hi1000SD (SAW DC)

  • Features ① SAW inverter DC welding machine

    ② Good quality of low and high current welding range

    ③ Digital inverter welding machine

    ④ Built in CC mode and CV mode

    ⑤ Compatible analog or digital carriage
  • Configuration
    and Option     Package composition

    ① Power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m



    Option

    ① Carriage type(analog, digital)

    - Analog carriage : cc or cv mode

    - Digital carriage : CC/CV

    ② Cable length

    ③ Earth clamp

    ④ Carriage rail

    ⑤ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/1000A (Input : 440V)



    Welding way

    SAW DC



    Weight

    321kg



    Dimension(WxDxH)

    600 x 1000 x 1300 (mm)

Hi700SA (SAW AC/DC)

Premium Hi series Hi700SA (SAW AC/DC)

  • Features ① SAW inverter DC welding machine

    ② Digital inverter welding machine

    ③ Built in AC mode and DC mode

    ④ Built in CC mode and CV mode

    ⑤ Built in AC output frequency control mode and Balance contorl mode
  • Configuration
    and Option     Package composition

    ① Power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m

    ⑤ Carriage rail



    Option

    ① Carriage type(analog, digital)

    - Analog carriage : cc or cv mode

    - Digital carriage : CC/CV

    ② Cable length

    ③ Earth clamp

    ④ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/700A (Input : 440V)



    Welding way

    SAW DC/AC



    Weight

    175kg



    Dimension(WxDxH)

    480 x 745 x 820 (mm)

Hi700SD (SAW DC)

Premium Hi series Hi700SD (SAW DC)

User manual
  • Features ① SAW inverter DC welding machine

    ② Digital inverter welding machine

    ③ Built in AC output frequency control mode and Balance contorl mode

    ④ Compatible use analog and digital carriage
  • Configuration
    and Option     Package composition

    ① Power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m

    ⑤ Carriage rail



    Option

    ① Carriage type(analog, digital)

    - Analog carriage : cc or cv mode

    - Digital carriage : CC/CV

    ② Cable length

    ③ Earth clamp

    ④ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/700A (Input : 440V)



    Welding way

    SAW DC



    Weight

    175kg



    Dimension(WxDxH)

    480x745x820 (mm)

Hi700EA

Premium Hi series Hi700EA

User manual
  • Features ① AD/DC EGW inverter welding machine

    ② Built in AC mode and DC mode

    ③ Built in CC mode and CV mode

    ④ Built in AC output frequency control mode and Balance contorl mode
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m

    ⑤ Wire feeder

    ⑥ EGW carriage (AC/DC type)

    ⑦ EGW torch

    ⑧ Carriage rail

    ⑨ Copper shoe



    Option

    ① Water tank

    ② Gas hose

    ③ Water hose

    ④ Earth clamp

    ⑤ Input power (380V/440V 3Phase ,60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/700A (Input : 440V)



    Welding way

    EGW



    Weight

    175kg



    Dimension(WxDxH)

    480x745x820 (mm)

Hi700Mn

Premium Hi series Hi700Mn

User manual
  • Features ① Premium inverter welding machine excellent for high-manganese steel welding

    ② Built in AC mode and DC mode

    ③ Built in CC mode and CV mode

    ④ Built in AC output frequency control mode and Balance contorl mode

    ⑤ Able to use analog and digital carriage
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Input cable 5m

    ③ Welding cable 30m

    ④ Earth cable 10m

    ⑤ Carriage rail 1pc



    Option

    ① Carriage(analog or digital type)

    ② Cable length

    ③ Earth clamp

    ④ Input power (380/440 3phase 60Hz)
  • Specifications Rated input

    440V 3PHASE ,60Hz (±10%)



    Rated output

    50V/700A (Input : 440V)



    Welding way

    SAW DC/AC



    Weight

    175kg



    Dimension(WxDxH)

    480 x 745 x 820 (mm)

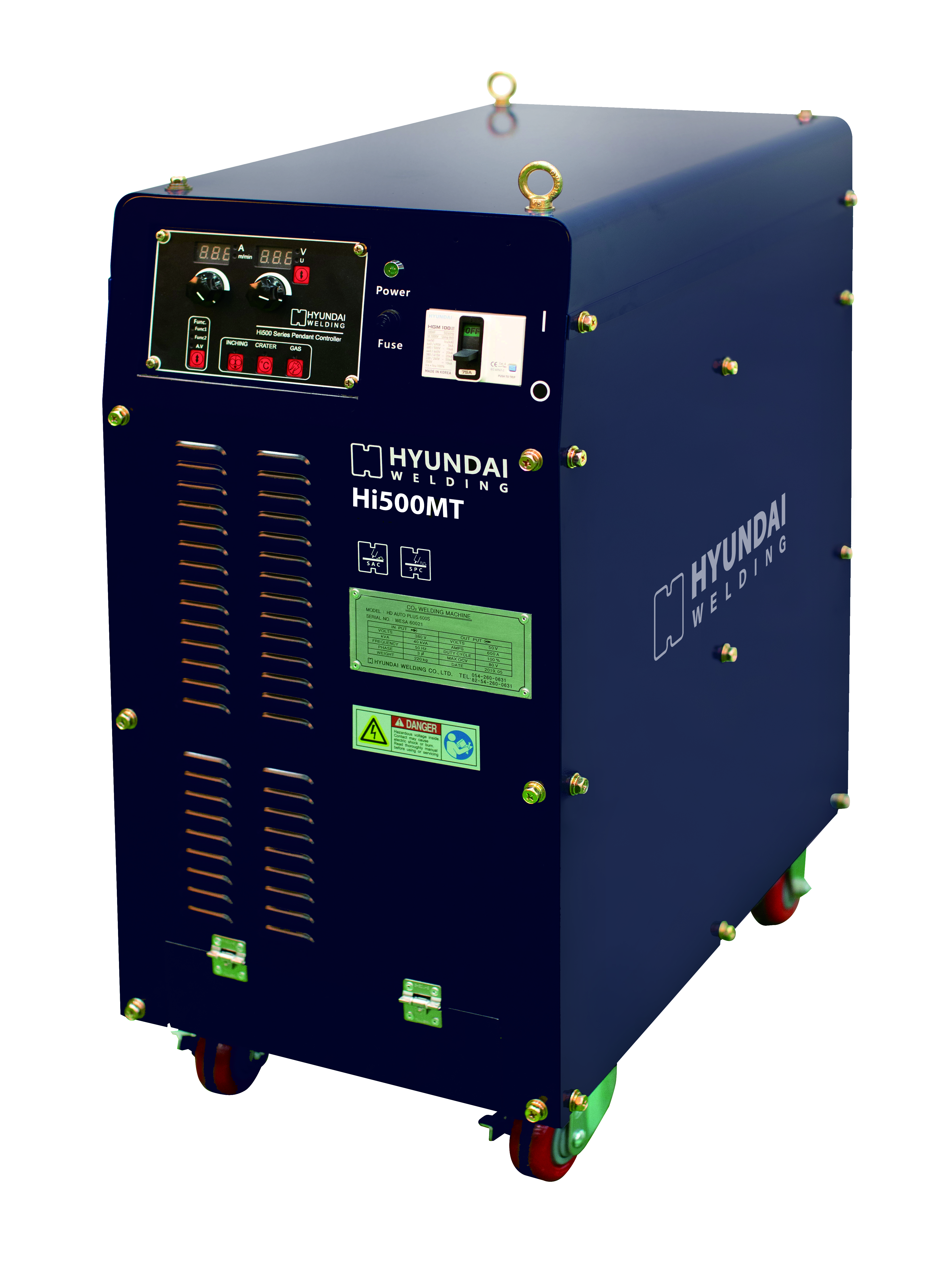

Hi500MT (Multi process)

Premium Hi series Hi500MT (Multi process)

Catalog User manual
  • Features ① Automatically switches polarity according to wire feeder

    ② A multifuntional three in one welding machine

    ③ built in Pulse TIG welding function

    ④ Switching frequency : 60kHz

    ⑤ CAN communication base
  • Configuration
    and Option     Package composition

    ① Digital wire feeder

    ② CO2 torch

    ③ Analog remote controller

    ④ TIG torch

    ⑤ Welding cable

    ⑥ Earth cable

    ⑦ Welding electrode holder

    ⑧ Input cable
  • Specifications Rated input

    440V, 3phase, 50/60Hz(±10%)



    Rated output

    500A,42V(100%)



    Welding way

    TIG, MIG, MAG, SMAW



    Weight

    83kg



    Dimension

    380 x 610 x 850 (mm)

Hi500G (MIG/MAG)

Premium Hi series Hi500G (MIG/MAG)

User manual
  • Features ① Premium welding machine that can be linked with robots

    ② Low heat input, low spatter welding function via SAC, SPC technique

    ③ High frequency switching inverter welding machine

    ④ Digital communication control method support

    ⑤ Able to use digital wire feeder (CAN communication type)
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Wire feeder (Specification depends on workstation)

    ③ Torch(Specification depends on workstation)

    ④ Input cable(Specification depends on workstation)

    ⑤ Welding cable(Specification depends on workstation)

    ⑥ Earth cable(Specification depends on workstation)

    ⑦ Gas hose(Specification depends on workstation)



    Option

    ① Wire feeder (spool cover, square box)
  • Specifications Rated input

    380/440V, 3-phase, 50/60Hz (±10%)



    Rated output

    500A,42V(100%)



    Welding way

    MAG, MIG, Pulse MIG



    Weight

    70kg



    Dimension

    380 x 610 x 850 (mm)

Hi500R (MIG/MAG)

Premium Hi series Hi500R (MIG/MAG)

User manual
  • Features ① Premium welding machine that can be linked with robots

    ② Low heat input, low spatter welding function via SAC, SPC technique

    ③ High frequency switching inverter welding machine

    ④ Digital communication control method support

    ⑤ Able to use digital wire feeder (CAN communication type)
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Wire feeder (Specification depends on workstation)

    ③ Torch(Specification depends on workstation)

    ④ Input cable(Specification depends on workstation)

    ⑤ Welding cable(Specification depends on workstation)

    ⑥ Earth cable(Specification depends on workstation)

    ⑦ Gas hose(Specification depends on workstation)



    Option

    ① Wire feeder (spool cover, square box)

    ② Water cooler

    ③ Regulator

    ④ Trolley (all-in-one)
  • Specifications Rated input

    380/440V, 3-phase, 50/60Hz (±10%)



    Rated output

    500A,42V(100%)



    Welding way

    MAG, MIG, Pulse MIG



    Weight

    70kg



    Dimension

    380 x 610 x 850 (mm)

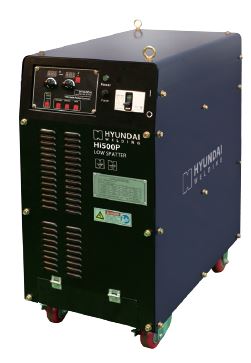

Hi500P (MIG/MAG)

Premium Hi series Hi500P (MIG/MAG)

Catalog User manual
  • Features ① New technology Wide SAC

    ② Premium welding machine

    ③ Low heat input, low spatter welding function via SAC, SPC technique

    ④ Built in pulse welding function for thin plates and shupbuilding (100% MAG welding)

    ⑤ Welding scrubber can substitute conventional TIG welding machines
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Wire feeder (wire cover type)

    ③ Torch 5m water cooling

    ④ Input cable 5m

    ⑤ Welding cable 10m

    ⑥ Earth cable 3m

    ⑦ Gas hose 3m

    ⑧ Water cooler



    Option

    ① Wire feeder (spool cover, square box)

    ② Water cooler

    ③ Regulator

    ④ Trolley (all-in-one)
  • Specifications Rated input

    380/440V, 3-phase, 50/60Hz (±10%)



    Rated output

    500A,42V(100%)



    Welding way

    MAG, MIG, Pulse MIG



    Weight

    70kg



    Dimension

    380 x 610 x 850 (mm)

Hi400P (MIG/MAG)

Premium Hi series Hi400P (MIG/MAG)

Catalog User manual
  • Features ① Excellent premium welding machine for automotive, pipe, thin plate and aluminium welding

    ② Able to weld with robot

    ③ Welding machine for steel and non-ferrous emtal sheet welding

    ④ Built in contact(analog, digital) and communication(device net) interface

    ⑤ Low heat input, low spatter welding function via SAC, SPC technique
  • Configuration
    and Option     Package composition

    ① Welding machine power source

    ② Wire feeder (wire cover type)

    ③ Torch 5m water cooling

    ④ Input cable 5m

    ⑤ Secondary cable 10m

    ⑥ Ground cable 3m

    ⑦ Gas hose 3m

    ⑧ Water cooler



    Option

    ① Wire feeder (spool cover, square box)

    ② Water cooler

    ③ Regulator

    ④ Trolley (all-in-one)
  • Specifications Rated input

    380/440V, 3-phase, 50/60Hz (±10%)



    Rated output

    400A,36V(60%) /350A(100%)



    Welding way

    MAG, MIG, Pulse MIG



    Weight

    40kg



    Dimension

    320 x 580 x 590 (mm)
top
